How much larger is the cable tray support than the cable tray itself

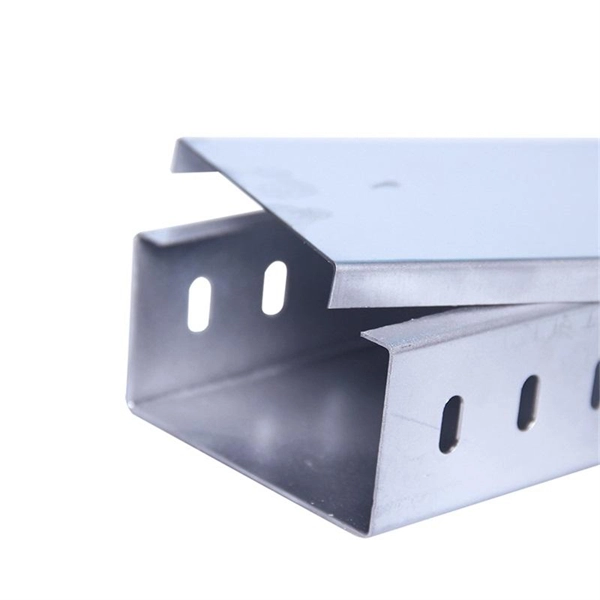

Cable tray size and support spacing depend on tray type, width, depth, material thickness, and cable load, with standard widths ranging from 50mm to 900mm and typical support spans of 1.5 to 3 meters.Cable Tray SizesCable trays are designed to support and organize electrical cables efficiently. Standard dimensions vary by type and application:Width: Nominal inside widths typically range from 50mm to 900mm, with wider trays used for large power or industrial installations and narrower trays for control or data cables .Depth (Side Rail Height): Usually between 50mm and 150mm, controlling vertical stacking and heat dissipation .Length: Most trays come in 3-meter sections, which balance transport convenience and installation efficiency .Material Thickness: Affects load capacity and allowable span; thicker side rails increase structural strength . Different tray types have specific sizing considerations:Ladder trays: Ideal for heavy power cables, allow airflow, and typically have rung spacings of 6, 9, 12, or 18 inches. Wider trays reduce cable stacking and heat buildup .Perforated trays: Provide continuous bottom support with ventilation openings, suitable for medium loads .Wire mesh (basket) trays: Lightweight, flexible, and ideal for data or control cables .Solid-bottom trays: Protect cables from dust or moisture but may trap heat .Cable Tray Support Size and SpacingSupport spacing is critical to prevent deflection and maintain safety:Typical support spans: For ladder or perforated trays, supports are usually placed every 1.5 to 3 meters, depending on tray width, material thickness, and cable load .Load considerations: Wider trays or trays carrying heavy power cables may require closer support spacing to prevent sagging.Small-diameter cables: For control or instrumentation cables, narrower trays (6–12 inches) with standard rung spacing are sufficient .Installation GuidelinesFill ratio: Cable trays should be filled to no more than 40% of their capacity to allow airflow and prevent overheating .Bending radius: Ensure cables maintain their minimum bending radius when entering or exiting trays .Material selection: Aluminum, steel, stainless steel, or FRP are chosen based on environmental conditions, load, and corrosion resistance . By selecting the correct tray width, depth, material thickness, and support spacing, you ensure compliance with NEC, NEMA, and IEC standards, maintain cable integrity, and allow for future expansion .
