How to set up a 10 Gigabit multimode fiber optic cable

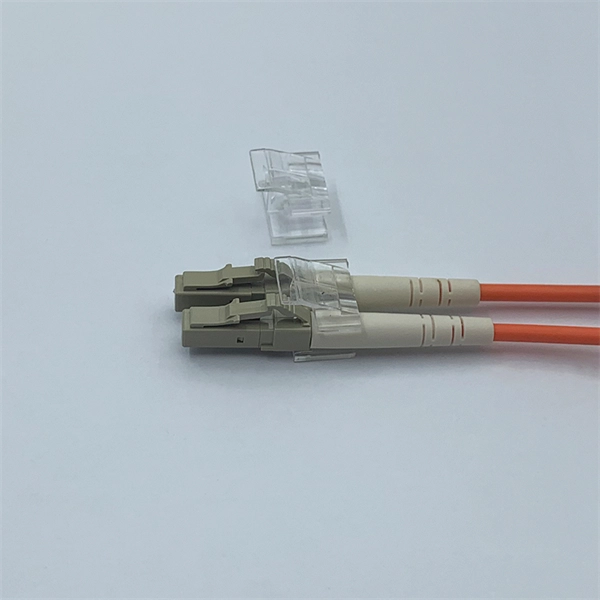

A 10G multimode fiber installation requires OM3/OM4 fiber, compatible SFP+ transceivers, proper cabling design, and structured deployment to ensure reliable 10Gbps performance.Fiber SelectionFor 10 Gigabit Ethernet over multimode fiber, OM3 and OM4 fibers are the most commonly used. OM3 supports distances up to 300 meters, while OM4 extends up to 400 meters for SR (short-range) SFP+ modules operating at 850nm, making them ideal for intra-data center links or high-speed home networks (Cisco SFP-10G-SR) . OM4 is preferred for future-proofing or longer rack-to-rack connections.TransceiversSR Cisco SFP+ modules or equivalent 10GBASE-SR transceivers are recommended for short-range multimode links. These modules are hot-pluggable, operate at 850nm, and provide high bandwidth with low insertion loss . For fiber-constrained environments, 10G BiDi SFP+ modules allow bidirectional communication over a single fiber strand using WDM, reducing cabling complexity and cost .Cabling and ConnectorsUse duplex LC connectors for standard SR links or single LC for BiDi modules.Ensure low-loss patch cords and proper fiber management in enclosures or racks to minimize insertion loss .Indoor/outdoor rated cables should be selected based on installation environment, with riser-rated or direct-burial cables as needed .Network Design and InstallationAssess infrastructure: Map existing conduits, ducts, or pathways for fiber runs.Plan link distances: Verify that the fiber type and transceiver combination meet distance requirements.Calculate link power budget: Account for fiber attenuation, splice losses, and connector losses to ensure signal integrity .Structured cabling: Use wall-mounted or rack-mounted fiber enclosures with proper cable management to maintain organized and scalable deployment .Testing: Perform insertion loss and continuity tests to confirm compliance with 10GbE standards.Additional ConsiderationsDigital Diagnostics Monitoring (DDM/DOM): Use SFP+ modules with monitoring capabilities to track optical power, temperature, and voltage in real time .Future scalability: Consider OM4 fiber and modular enclosures to support potential upgrades to 40G or 100G networks.Environmental factors: Multimode fiber is immune to EMI/RFI, making it suitable for electrically noisy environments . By combining OM3/OM4 multimode fiber, SR or BiDi SFP+ transceivers, structured cabling, and proper installation practices, you can achieve a reliable, high-performance 10 Gigabit network suitable for data centers, enterprise, or advanced home deployments.
