Fiber Optic Patch Cord Design Principles

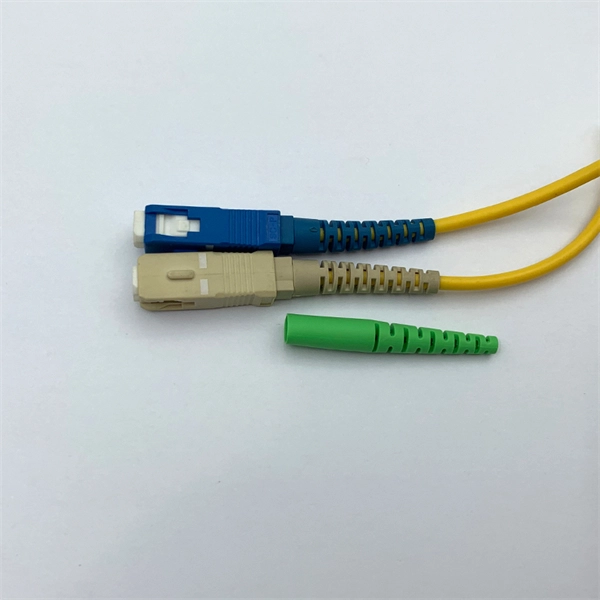

Fiber optic patch cords are short optical cables with connectors on both ends, designed for flexible, high-performance interconnections in optical networks.Core Components and StructureA typical fiber optic patch cord consists of the following elements:Optical Fiber Core: Determines the mode of light transmission. Single-mode fibers (OS1/OS2) allow long-distance, high-bandwidth transmission, while multimode fibers (OM1–OM5) support shorter distances and multiple light paths .Cladding: Surrounds the core to maintain light confinement and minimize signal loss.Strength Member: Often made of Kevlar (aramid yarn) to provide tensile strength and protect the fiber from mechanical stress .Outer Jacket: Protects the fiber from environmental factors. Materials include PVC for basic indoor use, LSZH for low-smoke applications, OFNR for riser shafts, and OFNP for plenum spaces . Armored jackets are available for outdoor or high-risk environments.Connector TypesConnectors ensure precise alignment and low insertion loss. Common types include:LC: Small form factor, duplex, widely used in data centers for high-density applications .SC: Larger, push-pull connector, common in FTTH and legacy systems.FC/ST: Bayonet or screw-type connectors, often used in lab or industrial setups.MPO/MTP: Multi-fiber connectors for high-speed parallel optics (40G/100G/400G) in data centers .MDC/CS: Miniature duplex connectors for next-generation high-density panels. Connector polishing types, such as UPC (Ultra Physical Contact) and APC (Angled Physical Contact), affect return loss and reflection performance.Design ConsiderationsWhen designing or selecting a patch cord, consider:Fiber Mode: Single-mode for long reach, multimode for short intra-data center links .Simplex vs. Duplex: Simplex carries one fiber, duplex carries two for bidirectional communication .Length and Routing: Choose appropriate lengths to minimize slack and bending stress.Environmental Requirements: Indoor, outdoor, plenum, riser, armored, or waterproof designs depending on installation .Application: Data center, telecom backbone, FTTH, or test/measurement setups. Each application may require specific fiber types, connectors, and jacket materials .Performance and ReliabilityA well-designed patch cord ensures:Low Insertion Loss: Minimal signal attenuation at connections.Low Return Loss: Reduced back reflection for sensitive optical equipment.Mechanical Durability: Survives repeated mating cycles and handling.High Bandwidth Support: Compatible with current and future network speeds, including 400G and 800G deployments .SummaryFiber optic patch cords are critical for network connectivity, bridging devices like switches, servers, and patch panels. Their design involves careful selection of fiber type, connectors, strength members, and jacket materials to meet performance, environmental, and application-specific requirements. Properly designed patch cords enhance network reliability, reduce maintenance, and support high-speed optical communication.
