Difference in cable tray installation height

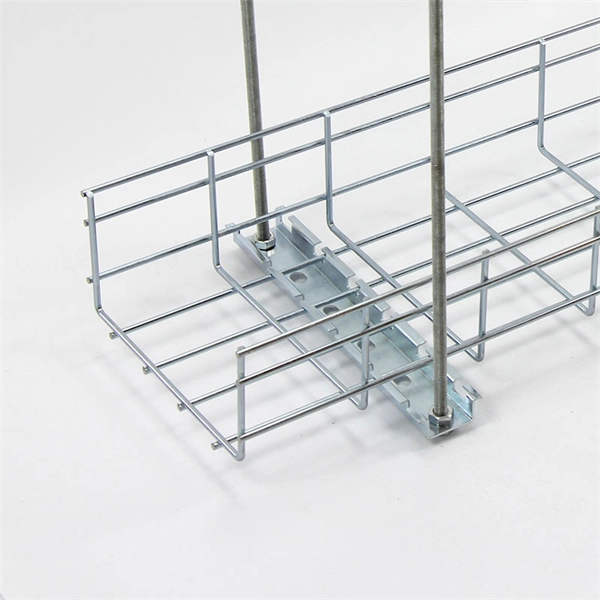

Cable tray supports should be installed level, with minimal height differences between adjacent supports to prevent excessive deflection and maintain structural integrity.Recommended Height PracticesCable trays must be supported at intervals defined by the support span, which is the distance between two adjacent support elements. The height of each support should be consistent to avoid sagging or uneven load distribution. Standards such as IEC 61537 and NEMA VE-1/VE-2 recommend that support points be aligned so that the tray remains level, with any height differences minimized to prevent stress on joints and fittings .Allowable Height DifferencesWhile exact tolerances may vary by manufacturer, general best practices include:Leveling tolerance: Small deviations of a few millimeters (typically ±5 mm) are acceptable for short spans, but larger differences can cause tray deflection or misalignment at splice points .Splice alignment: When using splice plates, ensure that the tray ends meet flush; height differences at splices should be avoided to maintain electrical continuity and mechanical stability .Adjustable supports: Use vertical adjustable hangers or brackets to correct minor height differences, especially in long runs or when the ceiling or wall structure is uneven .Practical Installation TipsSupport spacing: Follow manufacturer recommendations for support spacing, often 1/4 of the tray span at splice locations to reduce stress .Check level frequently: Use a spirit level or laser level during installation to maintain consistent height across supports.Accommodate fittings: When installing bends, T-pieces, or crossovers, adjust support heights to match the tray profile and prevent gaps or misalignment .Environmental considerations: Ensure supports are stable and resistant to vibration, thermal expansion, or other mechanical forces that could alter tray height over time .SummaryMaintaining consistent support height is critical for structural integrity, load distribution, and electrical safety in cable tray systems. Minor deviations are acceptable if corrected with adjustable supports, but large differences can lead to sagging, stress on joints, and potential system failure. Following IEC, NEMA, and manufacturer guidelines ensures a reliable and safe installation .
