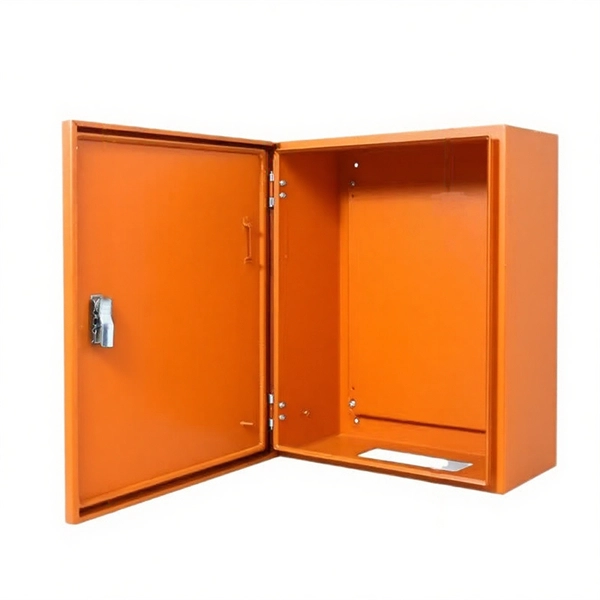

Distribution box busbars and wiring

Wiring busbars in a distribution box involves selecting the right busbar, ensuring proper current rating, securely connecting incoming and outgoing cables, and following strict safety protocols.Understanding BusbarsBusbars are metallic strips, usually made of copper or aluminum, that serve as central points for distributing electrical power within a panel or distribution box . They reduce wiring complexity, improve conductivity, and allow for organized, scalable connections. Busbars can be isolated (mounted on non-conductive bases) or non-isolated, depending on whether the connection must be electrically separated from the panel surface .Preparation and SafetyTurn off the main power supply and verify with a voltage tester that no current is present .Determine the maximum current load the busbar will carry and select a busbar rated for at least 125% of this load to prevent overheating .Gather tools: insulated screwdrivers, pliers, wire cutters, crimping tools, and a multimeter .Installation StepsMount the Busbar: Secure the busbar using brackets or supports inside the distribution box, ensuring it is stable and properly insulated if required .Connect Incoming Power: Attach the main supply cable to the busbar using appropriate lugs or clamps. Ensure tight, corrosion-free connections to minimize resistance .Connect Outgoing Circuits: Attach branch circuit wires to the busbar terminals. Use adapters or clamps if necessary to accommodate different wire sizes .Check Polarity and Phases: For three-phase systems, ensure each phase is connected to the correct busbar and maintain consistent labeling .Secure and Cover: Install touch-safe covers or insulating barriers to prevent accidental contact with live busbars .Test Connections: Use a multimeter to verify continuity and correct voltage distribution before restoring power .Best PracticesKeep wiring neat and organized to simplify maintenance and troubleshooting.Avoid over-tightening connections, which can damage terminals.Use tinned copper busbars in high-humidity or marine environments to resist corrosion .Regularly inspect busbar connections for signs of overheating or loosening. By following these steps, you ensure safe, efficient, and reliable power distribution within your electrical panel or distribution box .
